Building a ramp is more than just pouring concrete to connect two different elevations; it requires strict adherence to human ergonomics and safety standards. For homeowners and villa developers in Koh Samui looking to integrate universal design, a poorly planned ramp often leads to critical pain points—such as slopes that are dangerously steep or surfaces that become incredibly slippery during the tropical rainy season.
This article breaks down the essential structural standards and the “slope ratio” required to design a ramp that guarantees both functionality and absolute safety.
3 Critical Elements of Safe Ramp Construction (NBC Standards)
To ensure a ramp is fully accessible and safe, three primary parameters must be strictly controlled:

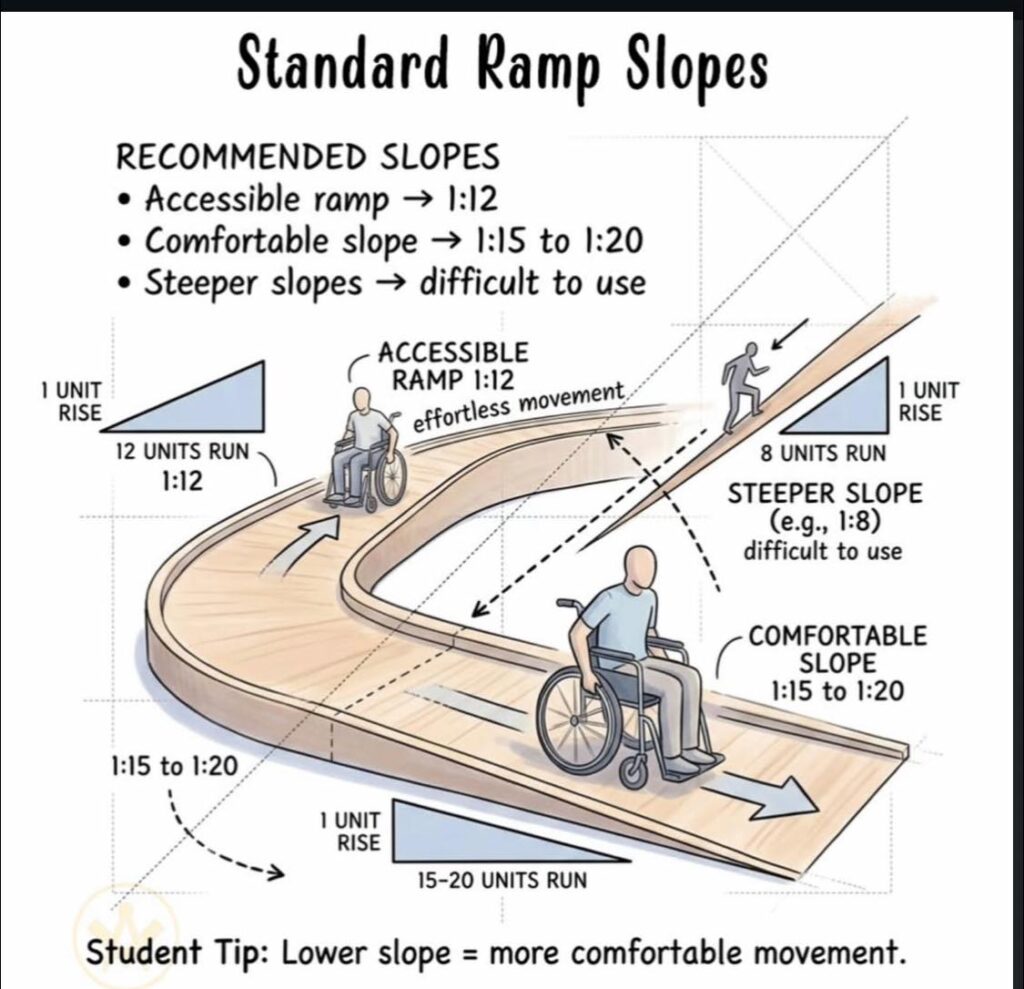

1. Gradient Control (The Slope Ratio)
The slope ratio dictates how much pushing force is required for a wheelchair and how much grip is needed for pedestrians.
- Standard Accessible Ramp: The maximum allowable slope is 1:12 (1 unit of rise for every 12 units of run).
- Comfortable Slope Zone: For optimal comfort and effortless movement, the ratio should be extended to between 1:15 and 1:20.
- Expert Site Warning: Any slope steeper than 1:8 completely destroys the ramp’s accessibility purpose and poses a direct physical hazard. Sacrificing safety to save space is a critical mistake.
2. Landing Planning (Rest Platforms)
A continuous, long ramp without breaks is highly dangerous.
- According to NBC standards, no continuous ramp run should exceed 9 meters in length without a provided landing platform.
- These landings act as “force dissipation platforms.” They allow users to safely stop, rest, or change direction (essential for L-shaped or U-shaped ramps).

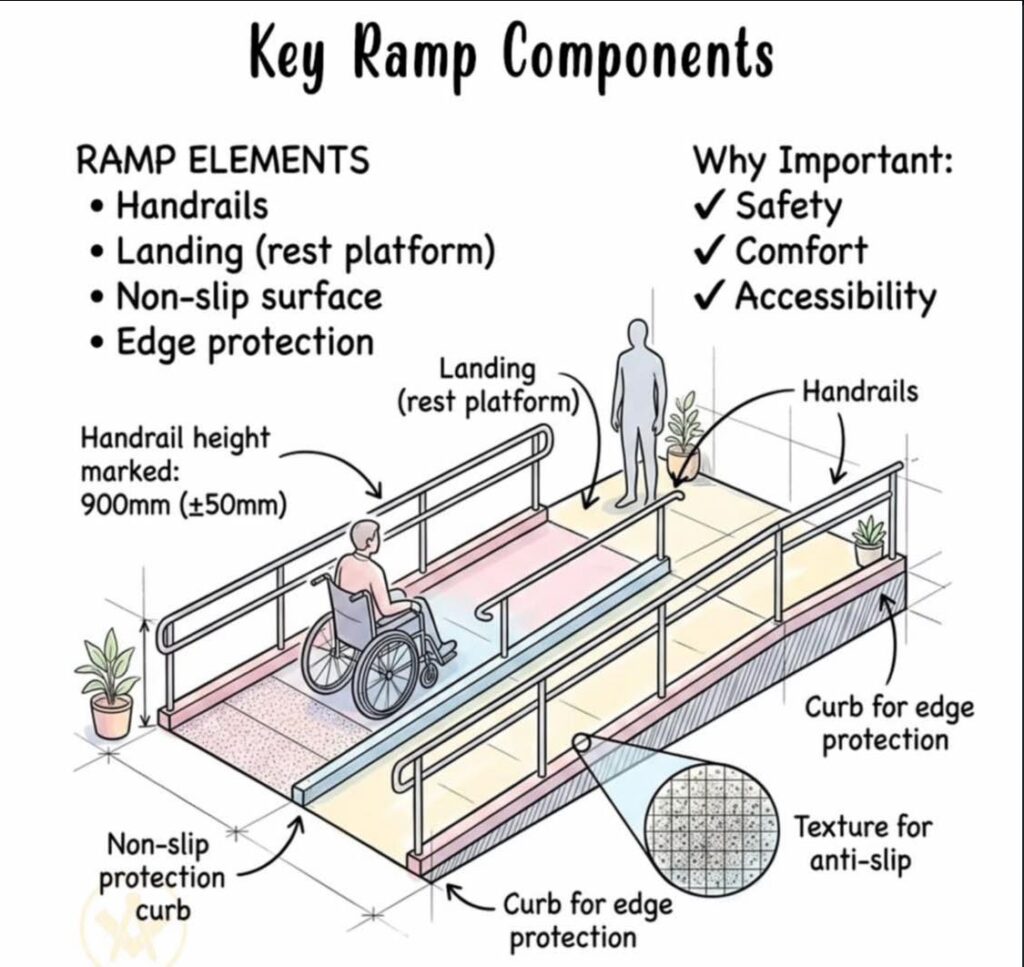

3. Active Safety Features
A properly structured ramp must integrate three specific hardware details:
- Handrails: Must be installed at a continuous height of 900mm (±50mm) to provide steady support.
- Edge Protection (Curb): Raised curbs along the edges are mandatory to prevent wheelchair wheels from slipping off the ramp trajectory.
- Anti-slip Surface: Especially crucial in Koh Samui due to frequent rainfall. Using brushed concrete, exposed aggregate, or specialized anti-slip decking significantly increases static friction.

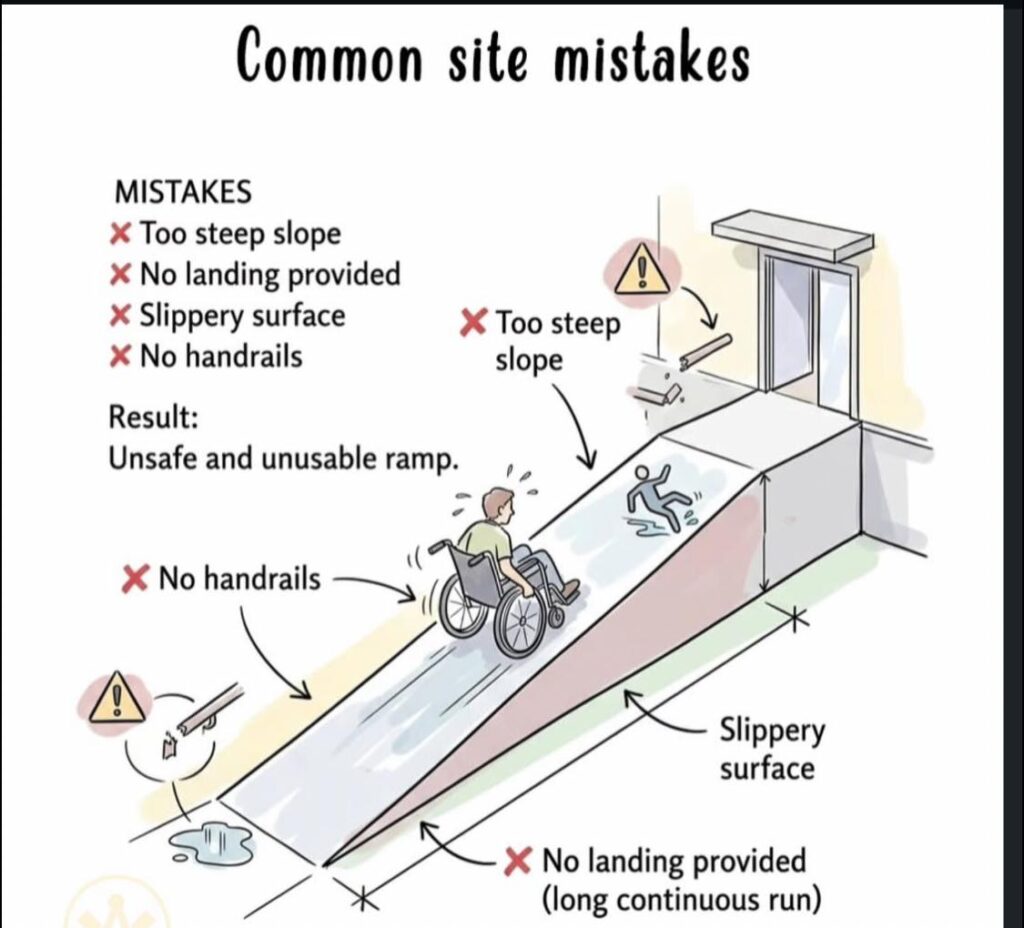

Common Site Mistakes (Pain Points) & Expert Solutions
We frequently encounter homeowners who realize their finished ramps are unusable. Here is how to avoid these common pitfalls:

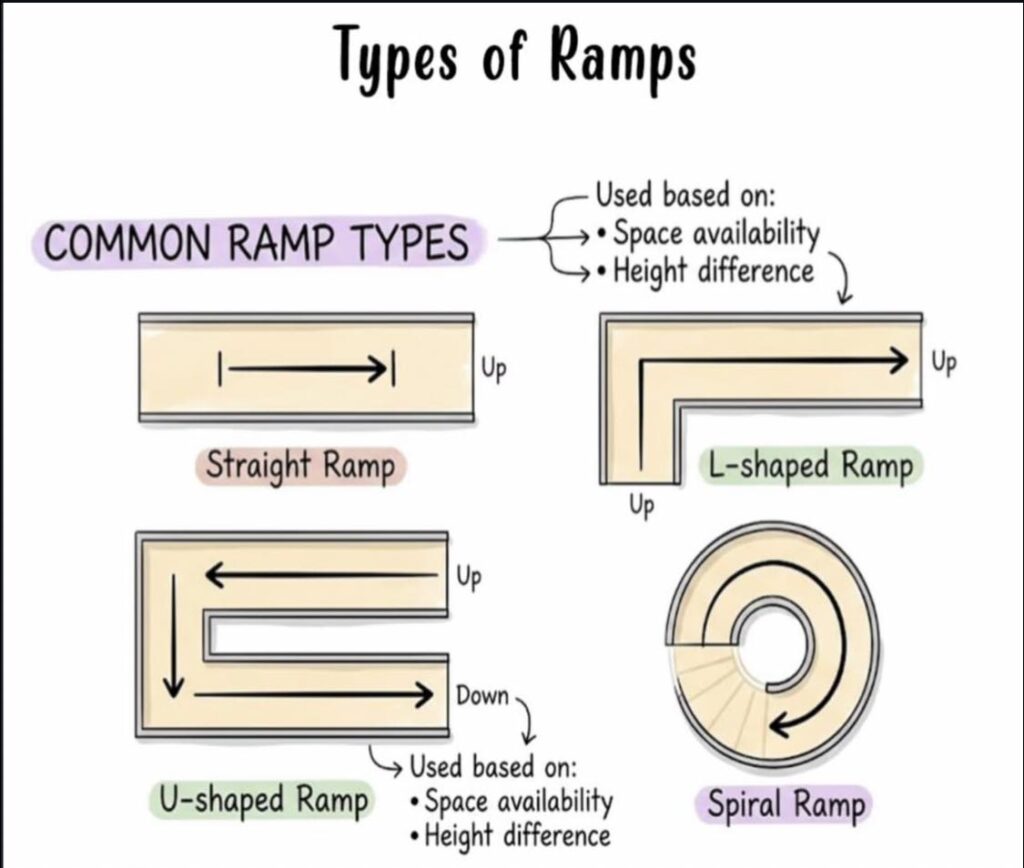

- Slope is too steep: Usually caused by a lack of linear space. Solution: Utilize L-shaped or U-shaped switchback designs to increase the run length and achieve the correct ratio.
- No landing at doors: Causes wheelchairs to roll backward while trying to open a door. Solution: Always design a flat, level platform immediately in front of any doorway.
- Slippery surfaces: Using standard smooth outdoor tiles. Solution: Always utilize materials with an appropriate high slip resistance (R-rating) designed specifically for wet environments.
Material Comparison Table for Villa Ramps in Koh Samui
| Material Type | Advantages | Disadvantages | Suitability for Villas |
| Brushed / Stamped Concrete | Highly durable, cost-effective, excellent grip. | Can look industrial; prone to cracking if ground settles. | Best for garage ramps, service entrances, or back-of-house areas. |
| Exposed Aggregate (Sandwash) | Very natural look, high anti-slip properties. | Can accumulate algae/mold in humid conditions; harder to clean. | Ideal for garden pathways or heavily sunlit main entrances. |
| WPC Decking (Wood Plastic Composite) | Premium aesthetic, fast installation, built-in anti-slip texture. | Higher initial cost; requires a properly leveled galvanized steel joist frame. | Perfect for luxury pool villas and high-end exterior transitions. |
Conclusion: Designing a ramp is always a calculated trade-off between available space and safety—and safety must remain the non-negotiable priority. If you are upgrading your property or constructing a new villa in Koh Samui, our expert engineering and technical team is ready to provide professional site assessments and structural solutions tailored to your exact needs.
